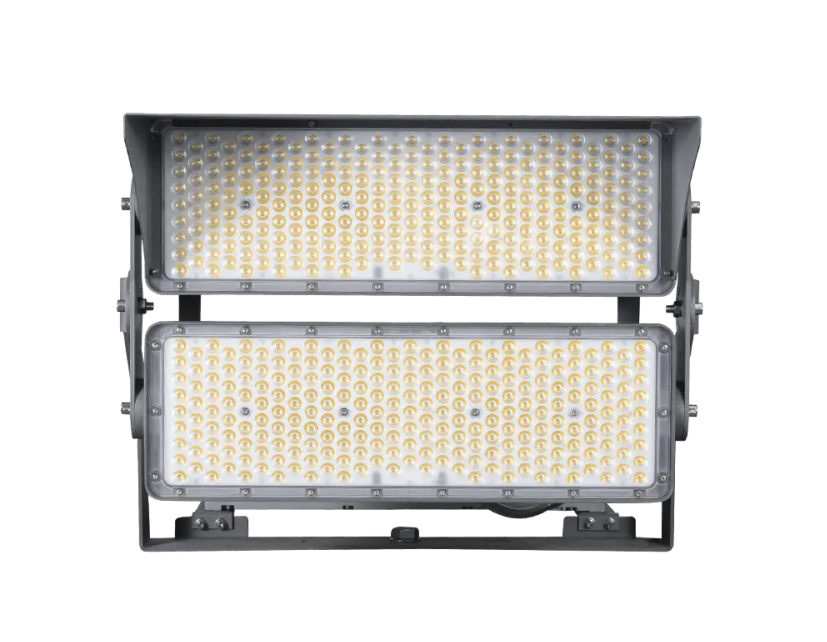

What is a floodlight?

A floodlight, also known as a spotlight or floodlight, is a widely used lighting fixture in modern lighting engineering. Simply put, a floodlight is a lighting device that can evenly illuminate in all directions. Its light distribution is not as concentrated as a spotlight, but rather presents a diffused or diffused effect, hence the name "floodlight."

Core Definition and Working Principle of Floodlights

The characteristic of floodlights is their ability to produce high-brightness, large-area, shadowless, uniform light.

Definition: It is a non-directional light source, typically used to illuminate specific areas or objects in a scene, especially effective when emphasizing three-dimensionality or large-area illumination.

Working Principle: Floodlights use built-in reflectors and a diffusion system to evenly project the light emitted by the light source onto the target area. Modern floodlights mostly use LED floodlight technology, which not only improves lighting efficiency but also significantly extends lifespan and reduces energy consumption.

Differences between Floodlights, Spotlights, and Accent Lights

While the terms "floodlight," "spotlight," and "accent light" are often used interchangeably in everyday life, they emphasize different functions in professional lighting:

Floodlight:

Light Characteristics: Provides uniform, soft, and wide-area light.

Main Uses: Focuses on basic illuminating, providing background light, and effectively eliminating shadows over large areas. It emphasizes a wide-range, uniform illumination effect.

Spotlight/Projector:

Light Characteristics: Highly directional, usually with an adjustable beam angle, and the light is more concentrated than a floodlight.

Main Uses: Primarily used to emphasize specific objects, building facades, or for long-distance projection. A typical outdoor lighting tool, focusing on directional projection and focused light.

Accent Light:

Light Characteristics: Extremely focused, with a narrow and concentrated beam.

Main Uses: Floodlights emphasize decorative effects and accent lighting, often used to illuminate exhibits, artworks, or decorative elements in small areas to achieve a focused and prominent effect.

In summary, floodlights focus on providing uniform, diffused basic lighting, while spotlights and floodlights focus more on directional projection and focusing for emphasis and decorative effects.

Main Applications of Floodlights

Due to their excellent lighting performance, floodlights play an irreplaceable role in many fields:

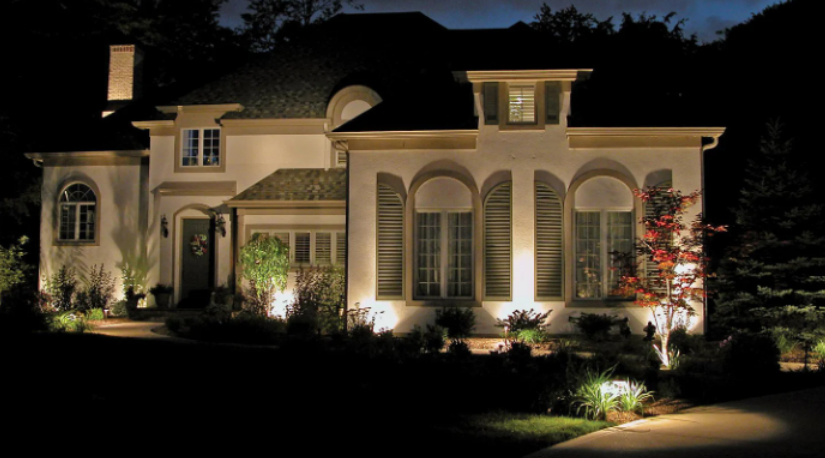

Architectural Facade Lighting: Used to illuminate the exterior of large buildings, bridges, or monuments, outlining their contours and enhancing the nighttime landscape. This is a typical outdoor lighting application.

Sports Stadium Lighting: Provides highly uniform illumination in large sports venues such as football and basketball courts, ensuring the visual requirements of matches and broadcasts.

Industrial and Warehouse Lighting: Provides ample, blind-spot-free lighting for large factory workshops and high-bay warehouses.

Stage and Film Lighting: Used as background or base light to uniformly illuminate scenes, creating a basic lighting environment for filming and performances.

Landscape lighting: Used in parks, squares, or green belts to evenly illuminate the area and enhance safety and aesthetics at night.

Key Factors for Selecting High-Quality Floodlights

When selecting floodlights, especially LED floodlights, the following aspects should be considered to ensure lighting effects and long-term stability:

Power and Brightness: Ensure the light output (lumens) meets the lighting needs of the target area.

IP Rating: Especially for floodlights used for outdoor lighting, a high level of waterproof and dustproof capability (such as IP65 or higher) is essential.

Heat Dissipation Design: Good heat dissipation is crucial for ensuring the lifespan and luminous efficacy of LED floodlights.

Color Temperature: Select the appropriate color temperature according to the application scenario. For example, warm white light (3000K) is suitable for landscapes, while cool white light (above 5000K) is suitable for sports fields or industrial areas.

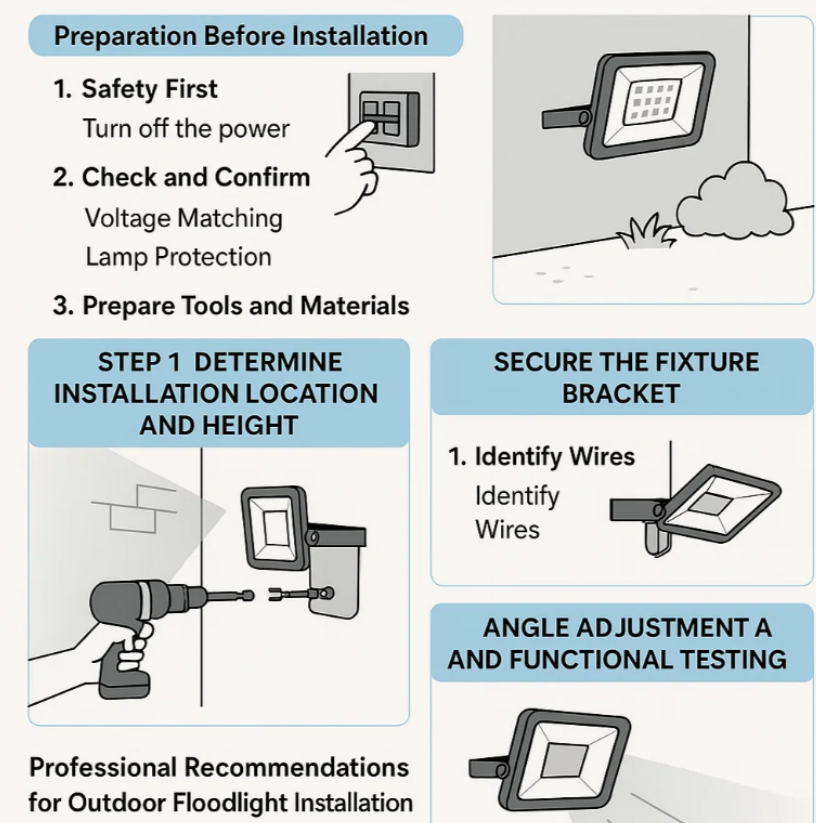

How to Install Outdoor Floodlights?

Outdoor floodlights are indispensable lighting equipment for enhancing building appearance, ensuring nighttime safety, and beautifying the landscape. Proper installation of outdoor floodlights not only ensures optimal lighting effects but is also key to extending the lifespan of the fixtures and preventing safety accidents. This article will provide a detailed introduction to the installation steps and important precautions for outdoor floodlights.

Pre-Installation Preparation: Safety and Tools First

Adequate preparation is crucial before installing your LED outdoor floodlights.

1. Safety First: Power Off

This is the first step in installing any outdoor lighting equipment. Always locate the appropriate circuit breaker, completely turn off the power, and post warning signs to prevent electric shock.

2. Check and Confirm

Voltage Matching: Confirm that the voltage of the outdoor floodlights you purchased (e.g., 110V, 220V) is completely consistent with the power supply voltage in your area.

Lamp Protection: Check the IP Rating of the outdoor floodlights. Since they are for outdoor use, it is recommended to choose lamps with an IP65 or higher rating to ensure good waterproof and dustproof performance.

3. Prepare Tools and Materials

You will need a drill, screwdriver, ladder, waterproof junction box, wire strippers, waterproof tape, screws, expansion bolts, and the new floodlights.

Key Steps for Outdoor Floodlight Installation

The correct installation process maximizes the performance and safety of your outdoor floodlights.

Step 1: Determine Installation Location and Height

The illumination angle and projection range of the floodlights are crucial.

Lighting Purpose: Determine the optimal installation angle and height based on whether it's illuminating a courtyard, building facade, or walkway.

Avoid Light Pollution: Pay particular attention to adjusting the floodlight's beam direction to prevent light spillage into nearby residences or disturbing road users (glare), ensuring compliance with Good Operating Procedures (GOP) for outdoor lighting.

Step 2: Secure the Fixture Bracket

Secure the fixture bracket or base firmly to the wall, post, or pole.

Drill holes in the selected mounting surface using a power drill.

Insert expansion bolts into the holes, then secure the floodlight bracket or base tightly to the mounting surface with screws. Ensure the bracket can support the weight of the fixture and is wind-resistant.

Step 3: Connect the Wiring (Wiring)

This is a critical step in installing outdoor floodlights; ensure the connections are secure and waterproof.

Identify Wires: Correctly distinguish between the power lines (live, neutral, and ground) and the wires leading from the floodlight.

Connection and Waterproofing: Properly connect the power cord and luminaire wiring within the waterproof junction box. For all connections, tightly wrap them with professional waterproof tape or waterproof terminal blocks, ensuring the junction box is completely sealed to prevent moisture ingress that could cause short circuits or electric shocks.

Step Four: Angle Adjustment and Functional Testing

After completing the wiring and securing, proceed to the final testing phase.

Angle Adjustment: Reconnect the power and test if the floodlight is functioning correctly. Adjust the angle and direction of the luminaire according to the expected illumination range, ensuring even light coverage of the target area.

Anti-Glare Treatment: If necessary, use the luminaire's built-in shield, baffle, or light-cutting accessories to control light spillage and reduce glare impact on the surrounding environment and pedestrians.

Professional Recommendations for Outdoor Floodlight Installation

Surge Protection: It is strongly recommended to choose outdoor floodlight products with surge protection design (e.g., 2kV～10kV), which effectively protects LED floodlights from damage caused by lightning strikes and voltage surges.

Professional Installation: If the installation environment is complex (e.g., involving high towers, special wiring), or if you are unfamiliar with electrical wiring, be sure to have a professional electrician perform the installation to ensure all operations comply with safety regulations.

By correctly following these steps and precautions, you will be able to complete the installation of outdoor floodlights efficiently and safely, providing you with a long-term, reliable outdoor lighting experience.

Which type of outdoor Floodlight is best?

There is no single "best" answer when choosing an outdoor floodlight. The ideal outdoor floodlight depends on your specific lighting needs, budget, installation environment, and functional requirements. LED floodlights are the mainstream in the modern outdoor lighting market, offering clear advantages, but the specific model and features chosen are crucial.

Why choose LED outdoor floodlights?

Today, most experts recommend LED outdoor floodlights because they far surpass traditional halogen or incandescent lamps in performance and cost-effectiveness.

High energy efficiency and economy: LED floodlights consume significantly less power than traditional lamps at the same brightness, resulting in lower operating costs and a more environmentally friendly design.

Long lifespan: LED light sources have a lifespan of tens of thousands of hours, reducing replacement frequency and maintenance costs, making them particularly suitable for high-altitude or hard-to-access outdoor lighting locations.

Versatility: LED outdoor floodlights are easily integrated into solar floodlights and battery-powered systems, offering wider applicability.

Key Considerations for Choosing the Best Outdoor Floodlight

To find the "best" outdoor floodlight for your needs, you need to focus on the following key specifications and features:

1. Protection Rating (IP Rating)

Since the fixtures need to withstand wind, rain, and dust, the protection rating is a crucial indicator of the quality of outdoor floodlights:

Standard Recommendation: Outdoor lighting fixtures are recommended to have at least an IP65 rating or higher. "6" represents complete dust protection, and "5" represents resistance to low-pressure water jets and effective protection against rain.

Coastal Environments: If you live near the sea or in highly corrosive areas, you should consider special corrosion-resistant models that have passed salt spray tests (such as the CNS8886 salt spray test), such as floodlights with die-cast aluminum housings and special coatings.

2. Intelligent Functions: Safety and Energy Saving in Balance

For enhanced safety and convenience, the "best" outdoor floodlights should possess intelligent functions:

PIR Sensor Floodlights: Equipped with a built-in passive infrared (PIR) sensor, these floodlights detect warm, moving objects (such as people or animals) and automatically activate upon detection of motion. This is ideal for home security or hallway lighting, significantly reducing unnecessary energy consumption.

Microwave Sensors: Some advanced outdoor lighting systems utilize microwave sensors, highly sensitive to even the slightest nearby movement, suitable for areas requiring higher sensitivity.

3. Optical Performance: Brightness and Color Temperature

The "best" optical performance depends on your specific application:

Brightness (lumens): Measures the light output of the luminaire. Large industrial sites or stadiums require high-wattage and high-lumen floodlights (e.g., 100 to 500 watts or higher); while home patios require lower brightness.

Color Temperature (K):

Warm white light (approximately 3000K): Suitable for landscaping and creating a warm atmosphere.

Cool white light (5000K and above): Suitable for work areas, sports fields, or industrial lighting requiring high definition.

4. Heat Dissipation Design and Structure

The lifespan of an LED floodlight is directly related to its heat dissipation design.

Heat Dissipation Design: High-quality floodlights typically employ an ultra-thin die-cast aluminum housing design to improve heat dissipation efficiency. Good heat dissipation ensures that the luminaire remains stable under high loads or long-term use, extending the lifespan of the LED floodlight.

The answer to "Which outdoor floodlight is best?"

A high-protection-rating LED floodlight that meets your environmental needs.

For general household safety and decorative lighting, high-quality IP65-rated PIR-sensing LED floodlights may be the best choice. For industrial or special environments, you will need to choose a high-wattage professional floodlight that has passed salt spray testing and has surge protection.

Are all floodlights suitable for outdoor use?

Floodlights, as lighting devices that provide uniform light over a large area, have an extremely wide range of applications. Whether used in stadiums, building facades, or large exhibition spaces, floodlights play a crucial role. However, a common misconception is that all floodlights are universally applicable, whether for indoor or outdoor lighting. The answer is no: not all floodlights are suitable for outdoor environments; the key lies in the luminaire's protection rating and structural design.

Indoor Floodlights vs. Outdoor Floodlights: The Fundamental Difference

The core factor determining whether a floodlight can be used outdoors is its ability to withstand environmental factors, especially water, dust, and extreme temperatures.

1. Indoor Floodlights (Indoor Use Only)

Indoor floodlights typically have a lower IP rating. They only need to protect against dust or accidental water splashes, not complete waterproofing. Their structure is relatively simple, heat dissipation relies mainly on air convection, and they do not possess special corrosion-resistant or UV-resistant materials. These luminaires are mainly used in indoor lighting environments such as large shopping malls, conference rooms, exhibition halls, and studios.

2. Outdoor Floodlights (Outdoor Rated)

True outdoor floodlights must have a high IP rating. They are not only more robust in construction, but also use special sealants, waterproof gaskets, and professional waterproof junction boxes to ensure complete sealing and withstand the harsh environments of outdoor lighting. High-quality outdoor LED floodlights typically feature a unibody die-cast aluminum housing design to ensure excellent heat dissipation and structural strength, and use corrosion-resistant and UV-resistant coatings and materials.

Key Indicators for Identifying Outdoor Suitability: IP Rating Explained

The most scientific basis for determining whether a floodlight is suitable for outdoor use is the Ingress Protection Rating (IP rating). It consists of two numbers, representing dust resistance and waterproof capability respectively.

First Number: Dust Resistance Rating. This number indicates the luminaire's ability to protect against external solid substances (such as dust).

Rating 5: Indicates that dust cannot be completely prevented from entering, but the amount that enters will not affect the normal operation of the equipment.

Rating 6: Indicates that the luminaire has complete dust resistance; dust cannot enter the luminaire's interior.

Second Number: Waterproof rating. This number indicates the luminaire's protection against liquids such as rain.

Rating 5: Indicates resistance to low-pressure water jets, suitable for general outdoor environments (such as patios and building facades). This is the minimum recommended standard for most outdoor floodlights.

Rating 6: Indicates resistance to powerful water jets, suitable for areas that may be subjected to significant water flow.

Therefore, if you intend to use it outdoors, the floodlight's IP rating should be at least IP65.

Why can't indoor floodlights be used outdoors?

Installing low-IP-rated indoor floodlights outdoors poses serious safety hazards and functional risks: Rain or moisture can easily enter the luminaire through the unsealed casing, contacting the circuit board and causing short circuits or even electric shocks. Furthermore, moisture can cause circuit corrosion and oxidation, rapidly damaging or severely degrading the LED floodlight's light source.

Summary: Choosing the Right Outdoor Floodlights

When purchasing floodlights, if you are certain you will be using them outdoors, please adhere to the following principles:

Confirm IP Rating: Carefully review the product specifications to ensure an IP rating of IP65 or higher.

Choose Outdoor-Specific: Specify the product as either an "outdoor floodlight" or "outdoor spotlight" when purchasing.

Consider Surge Protection: High-quality outdoor lighting fixtures incorporate surge protection to resist damage from lightning strikes or voltage instability, further enhancing the durability of LED floodlights.

Correctly identifying the applicable environment for floodlights is a crucial step in ensuring safe and efficient outdoor lighting.

Outdoor floodlights are the most widely used and indispensable lighting equipment in modern outdoor lighting. They are widely used in building facades, stadiums, landscape areas, and security lighting by providing large-area, uniform, and high-brightness light. Choosing the "best" outdoor floodlights hinges on confirming their durability and safety; therefore, models with a high protection rating (IP65 or higher recommended) are essential to effectively resist rain and dust. LED floodlights, currently the mainstream choice in the market, are the preferred option for all outdoor lighting projects due to their high energy efficiency, long lifespan, and optional intelligent functions (such as PIR sensing), ensuring long-term, reliable, and energy-efficient floodlighting effects.
